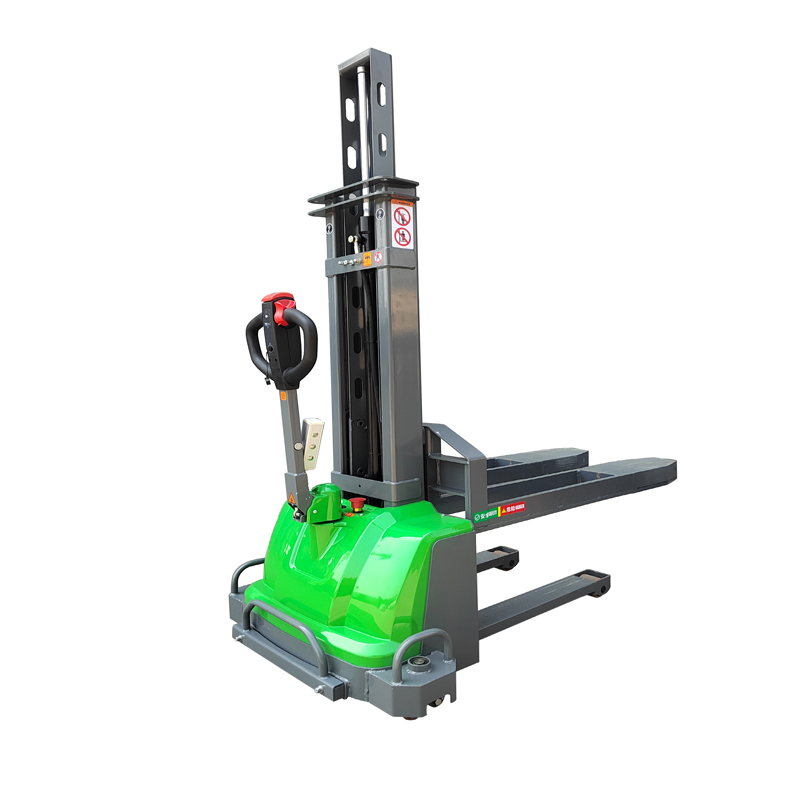

Full electric self-propelled Lifter FEYG

●Self-propelled lifter can transport with the goods in light to medium commercial vehicles

●Self -propelled lifter can lift itself into and out of the delivery vehicle.

●Self -propelled lifter quickly loads itself and the palletised cargo onto the van and unloads the van at the destination,leaving the driver to operate completely independently from the warehouse staff and all but eliminates manual loading and unloading.

●Self-propelled lifter could be used for following industries:

▲Car Manufacturers

▲Transport and Haulage

▲Warehousing

▲Civil Engineering Companies

▲Heating and Electrical Equipment Suppliers

▲Generator Power Systems

▲Exhibitions

▲Logistics

▲Furniture

▲Stone Masons

FEYG



i-Lift nr.15522011552202155220315522041552205155220615522071552208
ModelFEYG1009FEYG1011FEYG1013FEYG1015FEYG1209FEYG1211FEYG1213FEYG1215
DriveElectric(battery)
Driving modeWalking
Rated load Qkg (lb).1000(2200)1200(2640)
Centrul de încărcare Cmm (in.)400(15.7)
Wheels materialpoliuretan
Wheel size,drive wheelmm (in.)Φ190x70(7,5x2,8)
Wheel size,balancing wheelmm (in.)Φ75x35(3x1.4)
Wheel size,front wheelmm (in.)Φ80x70（3.1x2.8）
Max Fork Height h13mm (in.)900（35.4）1100(44)1300(51.2)1500(59)900(35.4)1100(44)1300(51.2)1500(59)
Overall Height l1mm (in.)1250(49.2)1450(57)1650(65)1850(72.8)1250(49.2)1450(57)1650(65)1850(72.8)
Maximum height of the entire vehicle during operationmm (in.)2480(97.6)2680(105.5)2880(113.4)3080(121.3)2480(97.6)2680(105.5)2880(113.4)3080(121.3)
Min.fork height h13mm (in.)85(3.3)
Overall length l1mm (in.)1730(68.1)
Fork Size S/E/Lmm (in.)60/195/1220(2.4/7.7/48)
Fork outer width b5mm (in.)560/600(22/23.6)
Ground clearance m2mm (in.)10(0.4)
Climbing ability,loading/unloading%3/5
FrânăElectromagnetism
Acționează puterea motoruluikw0.75
Ridicarea puterii motoruluikw2
Li-ion Battery voltage/rated capacityV / Ah48/25(Optional 30AH)
Greutatea baterieikg (lb).12(26.4)
Steering modeMachinery
Greutate netăkg (lb).388(853.6)395(869)402(884.4)408(897.6)388(853.6)395(869)402(884.4)408(897.6

Efficiency and convenience are at your fingertips with our state-of-the-art Full Electric Self-Propelled Lifter. Designed to revolutionize the way you handle your truck's cargo, this lifter is the ultimate companion for seamless loading and unloading operations.

Caracteristici cheie:

  1. Electric Power: Our lifter is fully electric, providing a clean and quiet operation that is kind to the environment and your workforce.
  2. Self-Propelled: Equipped with a self-propulsion system, it allows for easy movement around your warehouse or loading dock without the need for manual pushing.
  3. Load and Unload with Ease: With its user-friendly controls and robust lifting mechanism, this lifter makes the process of loading and unloading a breeze, reducing the physical strain on your team.
  4. Versatility: Suitable for a variety of truck sizes and cargo types, this lifter is designed to be a versatile asset in your logistics operations.
  5. Safety First: Incorporating advanced safety features, including an emergency stop button and overload protection, ensuring the safety of your staff and the integrity of your cargo.
